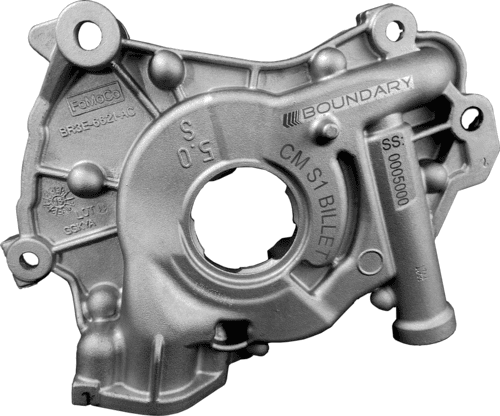

Boundary Assembly Ford Coyote Oil Pump CM-S1

Boundary Assembly Ford Coyote Oil Pump CM-S1

SKU: cm-s1 Categories: ,


Boundary Assembly Ford Coyote Oil Pump CM-S1

America’s muscle car is a blockbuster at the strip, and Boundary pumps are made to keep the camera rolling. Boundary pumps are made from heat treated 4140 chromoly billets, in house, right where the world’s best selling muscle car is made, THE USA. Boundary oil pumps are guaranteed for as long as you… or the next guy owns them.

Boundary focuses on providing the highest quality lubrication systems possible for the automotive industry.

The Coyote Motor oil pump starts with the Ford OEM housing, but is assembled with Boundary billet oil pump gear. This pump also and comes with the option for a high flow billet backplate for those running over 7000 RPM consistently.

All assembled billet pumps undergo the following:

  1. Pump is completely taken apart, all parts under go ultrasonic cleaning, air blast, and hand inspection.
  2. Pump is hand de-burred.
  3. Our industry leading mirror finished gear set is used
  4. Stainless Torx heads replace the stock fasteners
  5. All fasteners are torqued to spec
  6. Loctite applied to fasteners to prevent back out or loosening
  7. Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
  8. Assembly lubricant applied to all critical surfaces to get oil flowing fast on startup
  9. Parts are blue printed and issued with specification sheet.


 Part Number: CM-S1-FITS:

  • F150 2011-2017
  • MUSTANG 2011-2017
