Clear View 4" Screw-On Oil Filter 115-micron BC405-115-B

Description

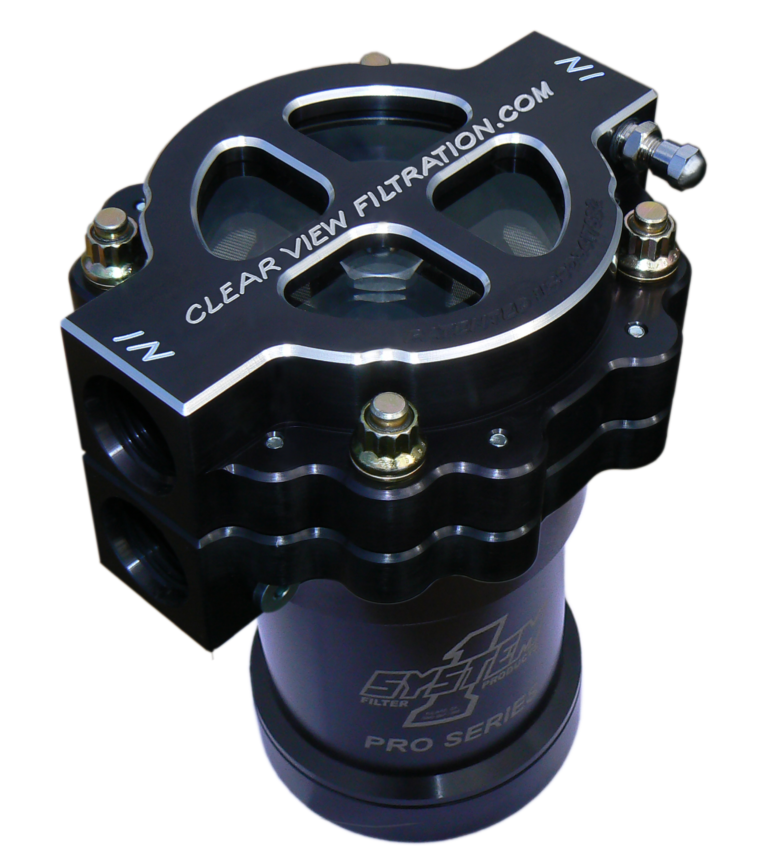

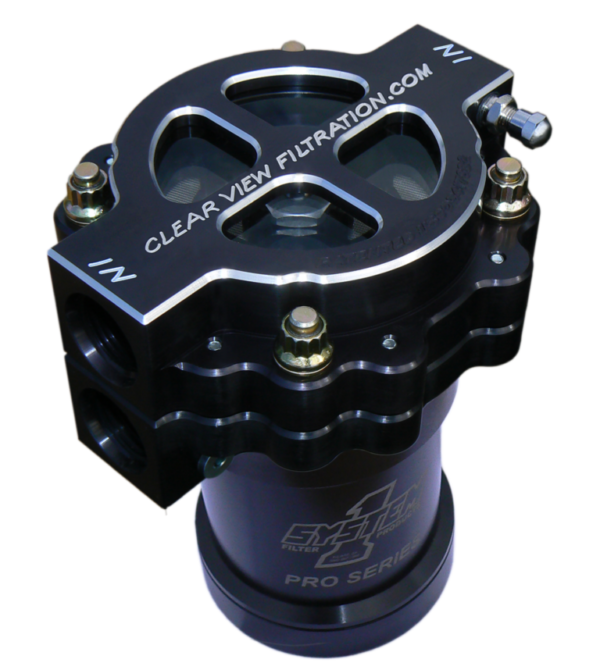

Clear View 4″ Screw-On Oil Filter Assembly BC405-115-B With -12 Ports & 115 Micron Element, Black Anodised

These 4” Screw-On Filters were designed to use a System 1 or disposable filter on the bottom (for use with System-1 and Chevy 13/16″ disposable cartridges). Early finned style and System 1 filters which use 2 O-Rings can only use the outside O-Ring to seal. The inside one cannot be used. Recommend using the Billet Pro Series System 1 which uses a single larger O-Ring seal. Also needs System 1 Chevy threaded bushing when using a System 1.

• Smallest Particles Filtered: depends on the disposable filter microns, varies on brand

• Recommended Disposable Filter for CV400-115: (not included) K&N # HP-2003 or # HP-3002 or WIX #51069 or # 51060 Blackout Series can use Napa Gold filters

• Disposable Filter Thread Size: 13/16” – 16 TPI

• Bypass Relief Valve: Yes

• Inlet & Outlet Fitting: #12 O-Ring Boss – 1-1/16” – 12 TPI

• Operating Temp: max 220 degrees Fahrenheit

• Operating Pressure: max 150 PSI • Height (without disposable filter): 3.00 in.
• Width: 5.00 in. • Length: 6.00 in. •Filter Weight: 3.40 pounds (1.55 kg)
