$2,899.00

Trick Flow® High Port® 240 Cylinder Heads for Small Block Ford TFS-5171T016-C02

This Product is Out of Stock

SKU: TFS-5171T016-C02 Categories: , , , Tags: , , , , , ,

Have any questions? Contact our team of experts.

Out of stock

Notify me when stock arrives

*Please ensure you have double checked this part is right fit for your application. Still Unsure? Contact our team

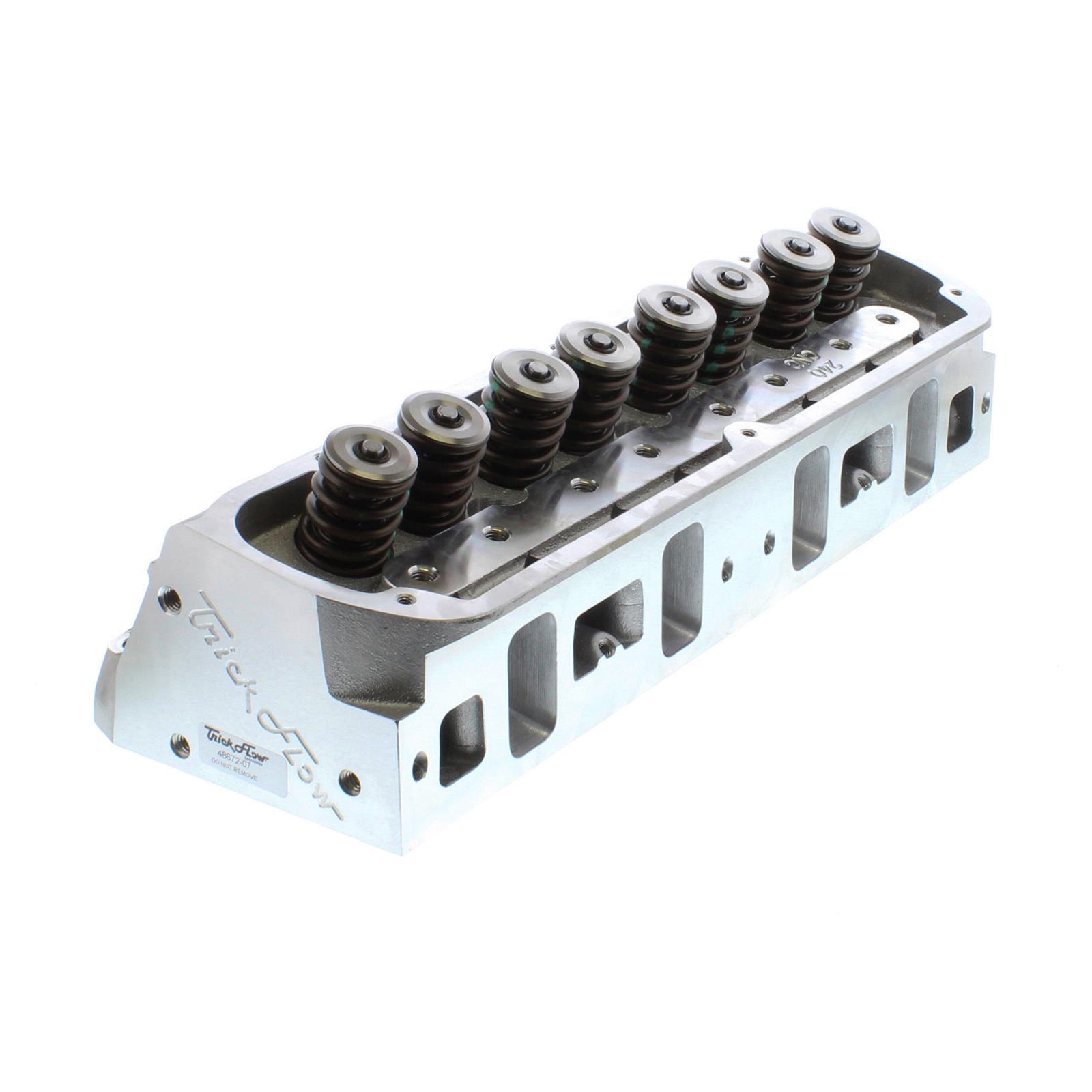

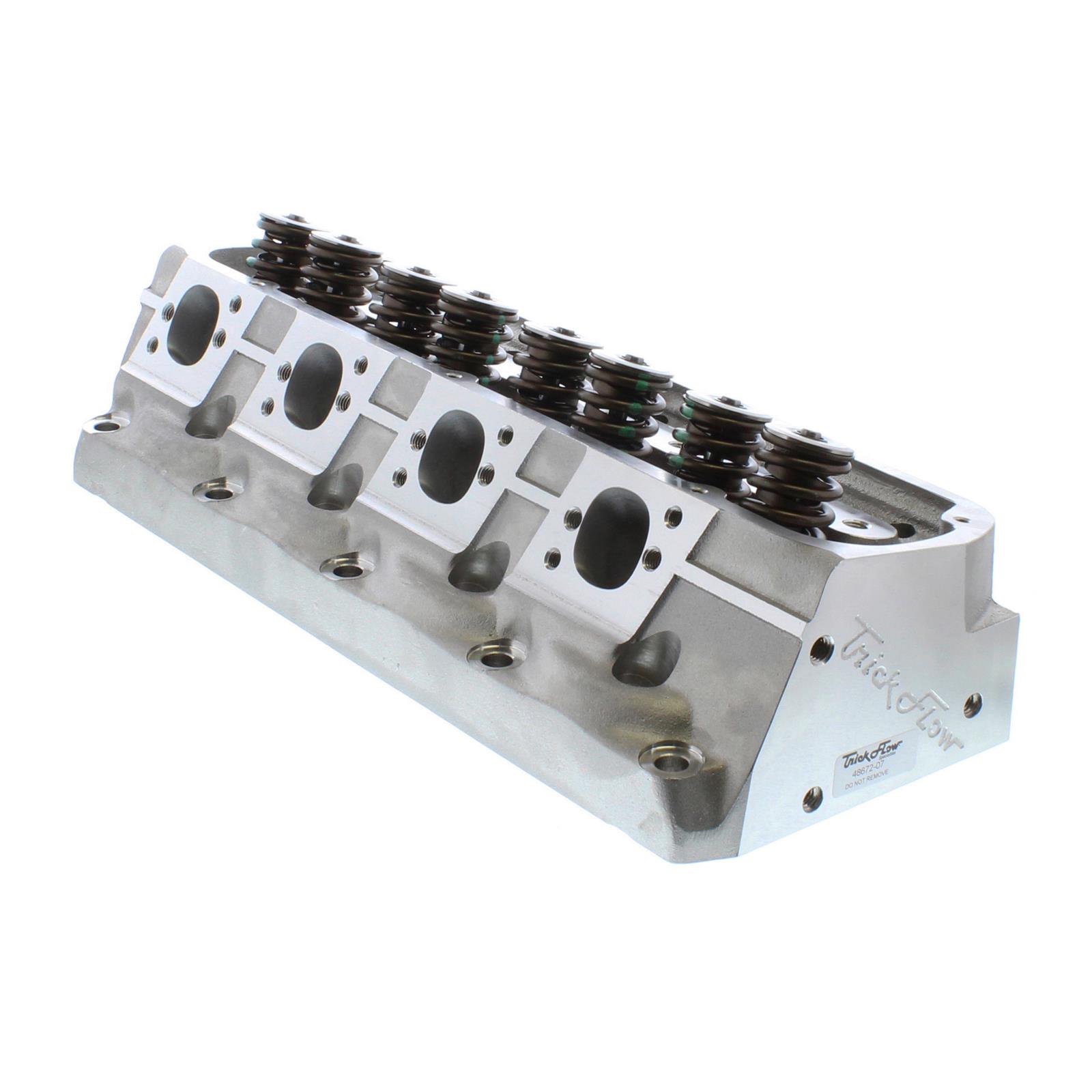

Trick Flow® High Port® 240 Cylinder Heads for Small Block Ford TFS-5171T016-C02

High Port® 240 cylinder heads for small block Ford are specifically designed for large cubic inch, large power adder, big shot nitrous oxide, and other mega-power combinations. These heads share many of the same exclusive features of High Port 192 “Fast As Cast” heads—unique valve spacing, raised exhaust runners, extra strong castings, thick decks, superior cooling, reshaped intake runner entries, extra material for porting, raised valve cover rails, and excellent airflow—plus top-of-the-line CNC Competition Ported runners with a high resolution surface finish for maximum airflow and power over the entire rpm range.

ombustion Chamber Volume (cc):
67
Intake Runner Volume (cc):
240cc
Exhaust Runner Volume (cc):
95cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Cast aluminum
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.100 in.
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
Yes
CNC-Machined Exhaust Runner:
Yes

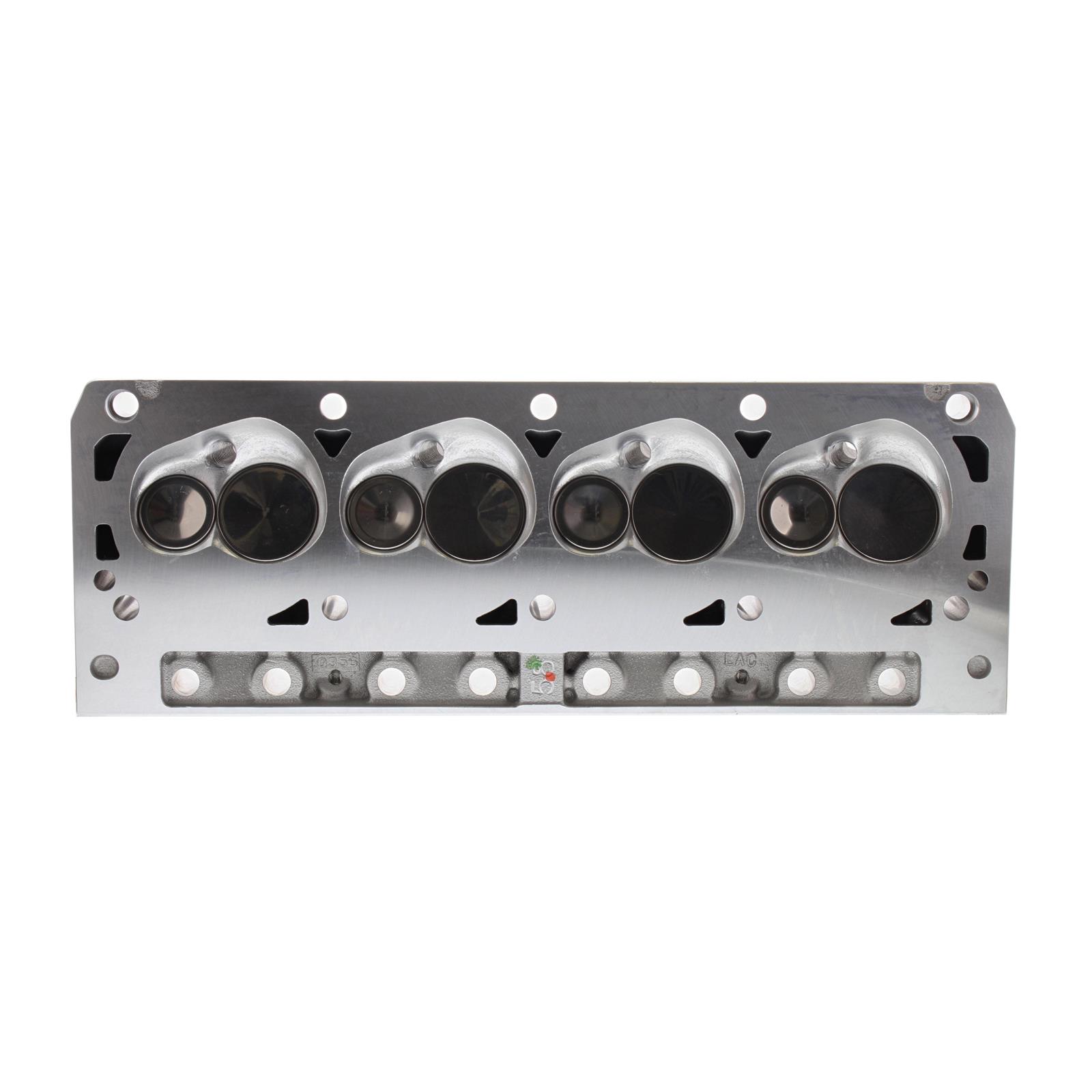

Combustion Chamber Style:
Heart
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Raised
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.600 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.680 in.
Outside Diameter of Outer Spring (in.):
1.550 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Titanium
Locks Included:
Yes
Lock Style:
10 degree
Valve Stem Seals Included:
Yes
Rocker Arm Studs Included:
Yes
Rocker Arm Nut Thread Size:
7/16 in.-20
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
5/16 in.
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
20
Exhaust Valve Angle:
20
Valve Guides Included:
Yes
Valve Guide Material:
Bronze
Valve Seats Machined:
Yes
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Remanufactured:
No
Quantity:
Sold individually.
Notes:
Exhaust port is raised 0.750 in. over stock location, must use headers designed for this cylinder head. Valve cover rail is raised 0.400 in. over stock. Must use inline valve-style piston or High Port specific pistons.



Additional information

Weight 22 kg
Dimensions 64 × 25 × 20 cm
