Brian Tooley Racing Trinity GODZILLA intake manifold 102mm BTR-TRA-GZ-BLK

Description

Brian Tooley Racing Trinity Godzilla intake manifold 102mm BTR-TRA-GZ-BLK

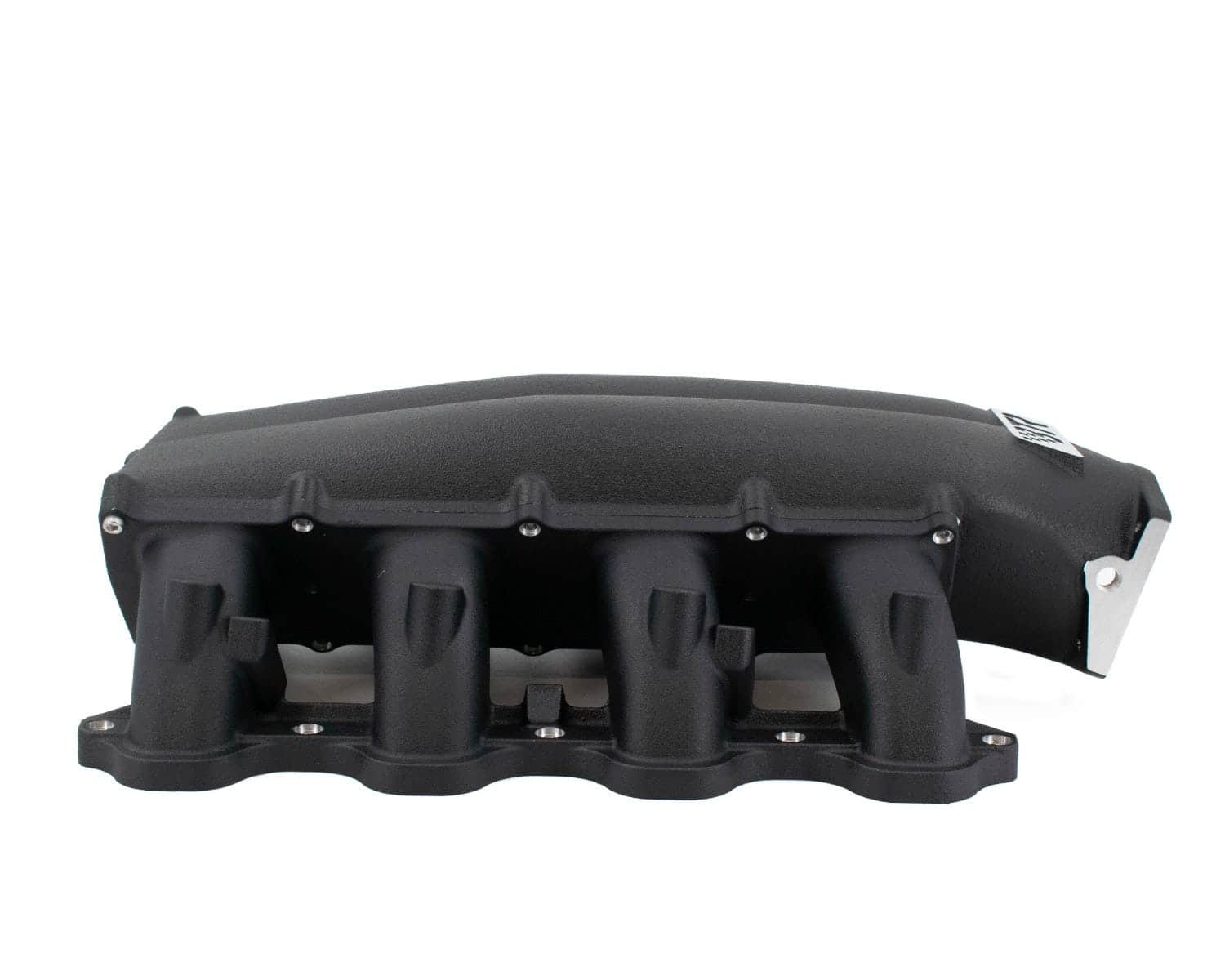

The latest offering from BTR in high quality cast aluminum intake manifolds! The new TrInity Godzilla manifold is a short runner, 3-piece design that allows for the ultimate in application flexibility. It is similar in concept to billet Intakes costing thousands more. Optimum operating range is 6000-8500 rpm and is primarily intended to bridge the gap between N/A and Boosted applications. It utilizes the LT1 throttle body when using an OEM ECU. Can also be used with LS style 4 hole TBI’s when using aftermarket ECU’s. The design incorporates 2 runners and an interchangeable plenum. The seal is generated by 8 entrapped o’rings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws. The port seals are achieved SAE o’rings seated in a dovetailed o’ring groove. Both the port mouth radius and the port match is CNC machined. The TRInity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18” NPT on the rear. The manifold is available in Natural or Black Satin Texture powder coat finishes . The manifold comes semi-assembled and includes all the hardware required to bolt it on. Runners and plenums can be purchased separately.

BRIAN TOOLEY RACING PRODUCTS

RaceMax Direct is proud to be Australia’s home for Brian Tooley Racing. Products we stock directly from BTR include Equalizer Manifold LS, Brian Tooley Racing Rocker Arm LS, BTR Shaft Rocker Conversion LS3, BTR Shaft Rocker Conversion LS and Brian Tooley Racing Pushrods, BTR Camshafts and BTR Valve Spring Kits.

Need something else from Brian Tooley Racing? Contact us today! Trade prices are available.

Brian Tooley Racing (BTR) – the story

Brian Tooley has been in the performance racing game for nearly three decades.

Starting his own business back in 1992 called Total Engine Flow, Brian was using a Flowdata flow bench. Shifting to Holley Performance Products shortly afterwards, he helped develop the SysteMax head, intake and camshaft packages.

Going back to working on his own in 1996 until 2004, Tooley then built Total Engine Airflow into an industry titan.

Since then he sold his business to Summit Racing Equipment and stayed on until 2010 when he decided to be closer to family and friends.

As his BTR webpage revealed, it wasn’t long before Brian was back after seeing a need for quality spring kits at affordable prices.
