Callies Compstar H-beam connecting rods LS 6.125" CSC6125DS2A2AH

Callies Compstar H-beam connecting rods LS 6.125" CSC6125DS2A2AH


SKU: CSC6125DS2A2AH Category: Tags: , , ,

Brain Tooley Racing H-beam connecting rods LS 6.125″

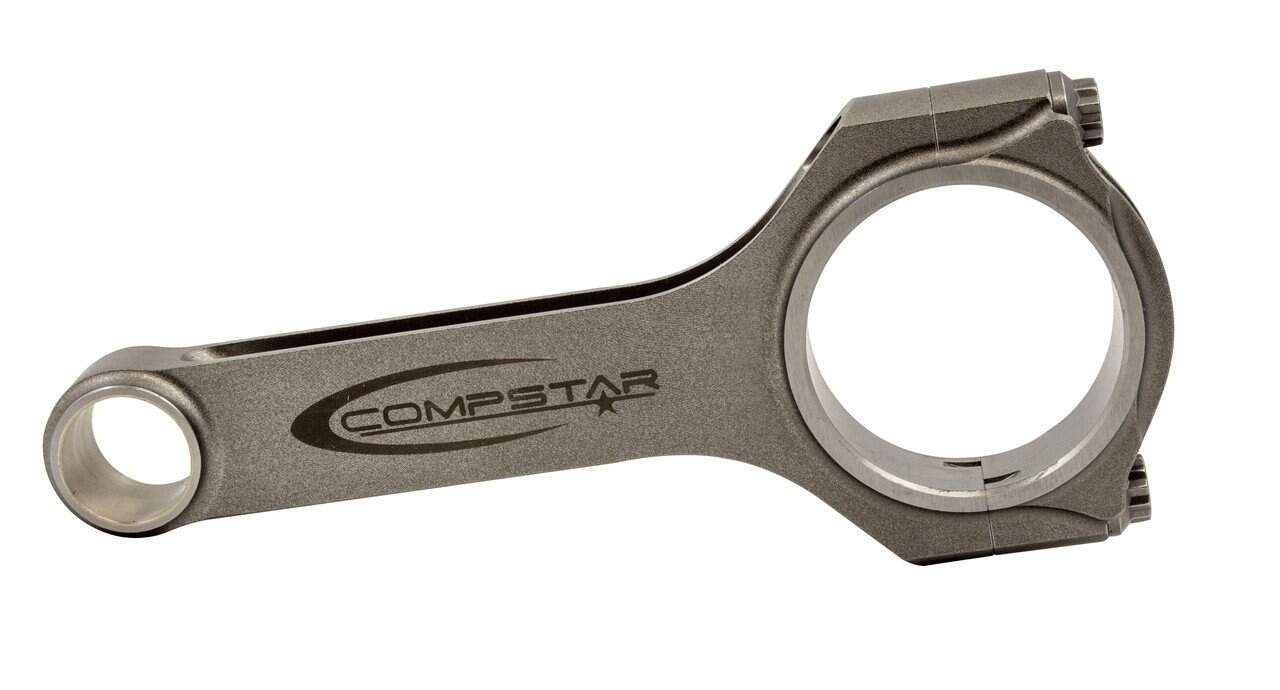

Callies Compstar 4340 forged H-beam rods
6.125″ long .927″ bushed pin 2.100″ journal
Rated for 1000HP
7/16″ ARP2000 bolts
Callies # CSC6125DS2A2AH

Designed and Produced with Engineering and Finishing advancements, CompStar connecting rods have what it takes to make your engine build trouble free and your finished product reliable. Produced from heat treated and stress relieved 4340 material, CompStar rods are fully machined with a shot blasted Stress Riser free surface. Every detail of this highly stressed component has been carefully analyzed to maximize repeatability and dependability.

Comp Star 4340 steel H-beam connecting rods feature ARP 2000 bolts carefully positioned for maximum pan rail clearance with additional stroker clearance designed into each rod. Other features include large outboard mating face contact area, fully detailed and prepped parting lines and bearing tab pockets. All rods are consistantly final sized within a .0002″ tolerance. Weight matched sets are within 2 grams.
