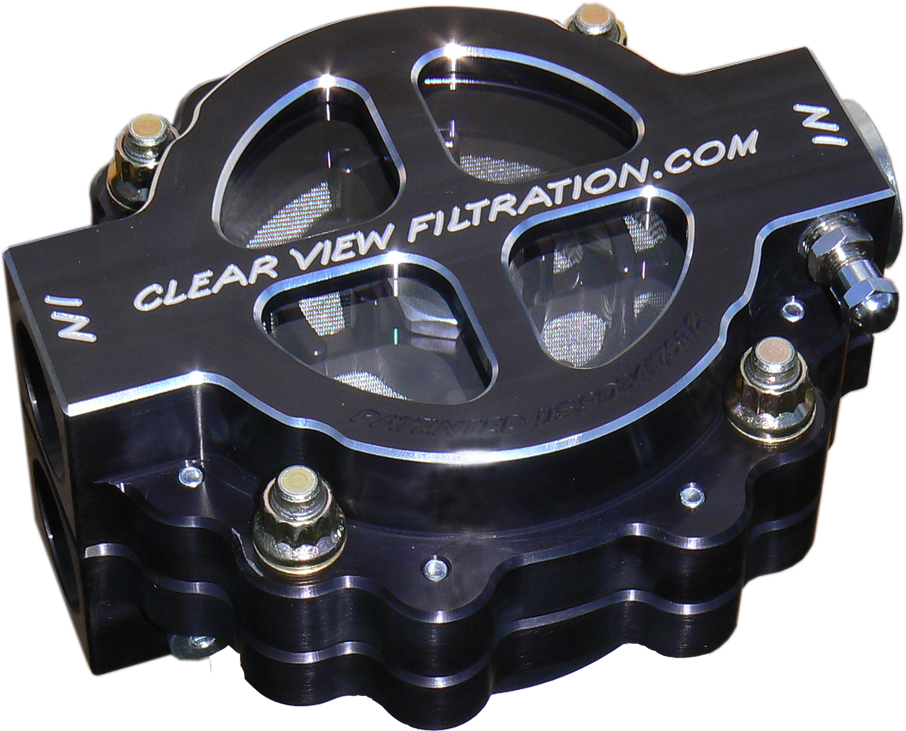

Clear View 4″ Hi-Flow Dry Sump Filter 115-micron BC445-115-B

Clear View 4″ Hi-Flow Dry Sump Filter 115-micron BC445-115-B

$1,158.00

Available on backorder

SKU: BC445-115-B Categories: , Tag:

Available on backorder

Description

Clear View 4″ Hi-Flow Dry Sump Filter BC445-115-B with -16 Ports & 115-Micron Element, Black Anodised

4″ Dry-Sump See through Filter Assembly with #16 Ports 115 Micron Element, for running all weight oils up to 70 weight. Designed to be mounted between the Dry-sump oil pump and the oil tank a #16 scavenge line. Also for applications where the oil tank has a flat bottom and running 60 or 70 weight oil like a lot of super charged funny cars and tractor pullers. Flat bottom unlike tapered bottom tanks particles will settle to the bottom and may not be sucked through the pressure side of the oil pump for inspection. Tapered bottom tanks can run the see through filter on the pressure side.

  • Smallest Particles Filtered: 115 Microns
  • Bypass Relief Valve: No
  • Inlet & Outlet Fitting: #16 O-Ring Boss – 1-5/16″ -12 TPI
  • Operating Temp: max 220 degrees Fahrenheit
  • Operating Pressure: max 150 PSI
  • Height: 3.00 in.
  • Width: 6.00 in.
  • Filter Weight: 3.50 pounds(1.6kg)
  • Use in conjunction with BC450-B for the ultimate filtration
